FLOW SWITCHES FOR WATER
R65.00 – R4,313.00
Description
Specifications:

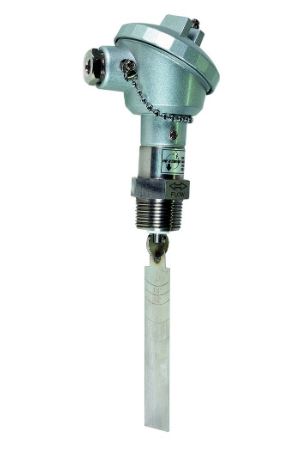

FS-80
- Housing Material: Aluminium (IP65)
- Paddle Material: 304 S/S
- Switch: SPDT, 60W @ 230VAC
- Operating Temperature: -30 to 150ºC
- Operating Max Pressure: 355PSI
- Pressure drop allowance: 3PSI
- Set point tolerance: ±25%
- Repeatability difference: ±5%
- Connecting: 1″ PT Screw
- Weight: 850g
- Spare Paddle: FS-80 Paddle

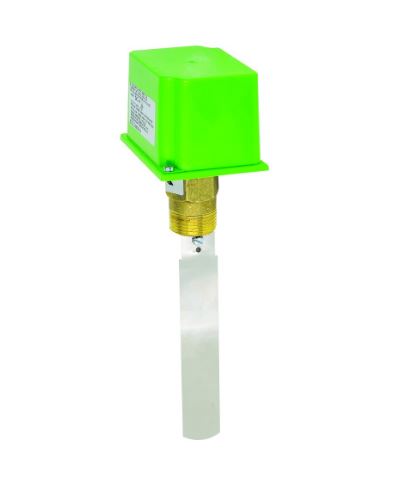

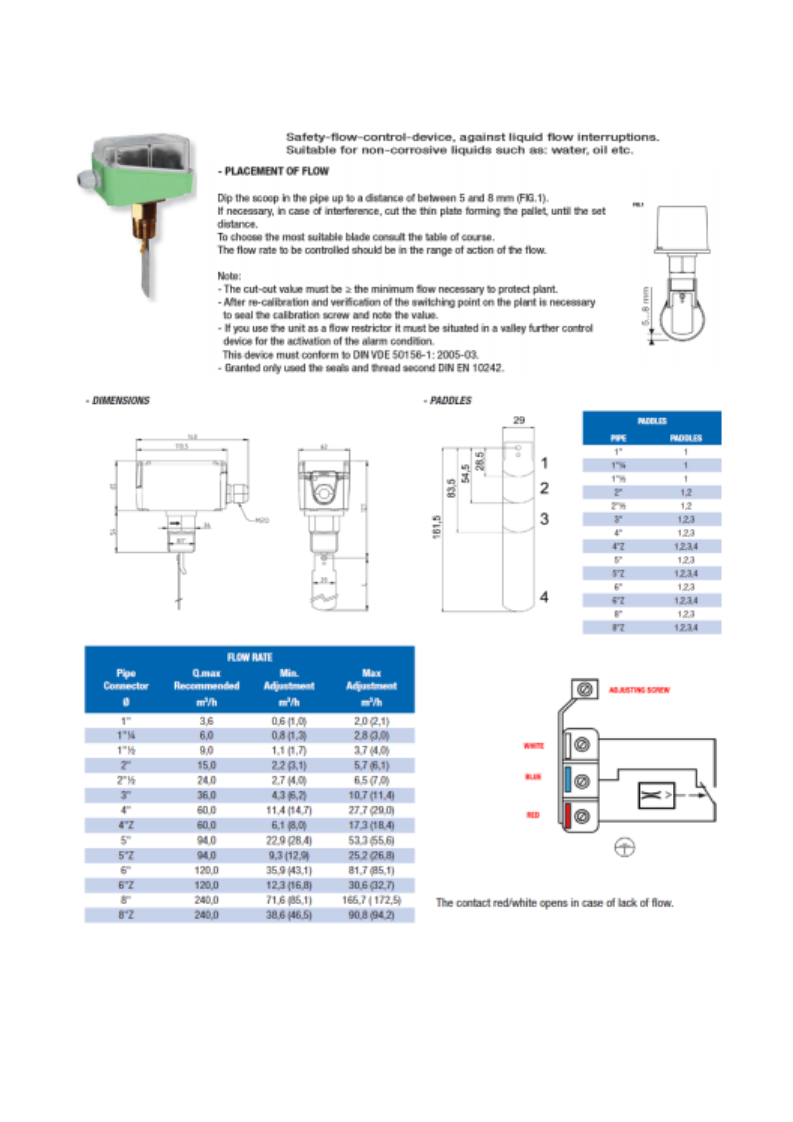

FS-5233
- 3 Different Paddle Lengths, 57, 88 & 167mm
- Housing Material: ABS (IP64)
- Paddle material: 304 S/S
- Switch: SPDT, 16A@230VAC
- Connecting: 1″ PT Screw Brass
- Operating temperature: -20 to 120°C
- Operating pressure Max: 10kg/cm²
- Set point tolerance: ±25%
- Repeatability differences: ±5%
- For piping 1″ to 8″
- Adjustable Setting
- Weight: 660g
- Spare Paddle: FS-2533 PADDLE
Additional information
| CODE | FS-80, FS-2533 |
|---|---|
| PADDLE | FS-80 PADDLE, FS-2533 PADDLE |
